T1 Data Output USB Interface

USB interface to input measurement data from a M-SURE gauge equipped with the T1 data output directly onto your PC. Inserting the value into a Excel spreadsheet or similar Windows program. No driver or additional software required.

  • Caliper measurement recording
  • Data capture from digital indicators
  • Part inspection
  • Measurement data acquisition
  • Quality control
AttributeValue
Product CodeMS-601-010
Data Input TypeM-SURE Type 1
USB Cable Length2000mm
Interface to Gauge Length400mm



T1 Data Output Remote Display

Remote display compatible with any M-SURE gauge equipped with the T1 data output. The display has a zero, mm/inch, and ABS buttons. The display will also show inch fractions. 2000mm cable length. CR2032 battery.

  • Remote display for digital indicators
  • horizontal or vertical digital scales
  • hard to reach measurements
  • remote digital caliper display
Attribute Value
Part Number MS-620-001
Data Input Type M-SURE Type 1
USB Cable Length 2000mm
Character Height 12mm
Battery CR2032 3v Lithium Battery

MS-110 Series External Digital Micrometers

This standard digital micrometer is a popular choice for factory floor and general inspection processes. With a rotating spindle and ratchet thimble.

UKAS calibration available.

  • Mechanical Engineering
  • Product Inspection
  • Calibration
  • Research & Laboratory Applications
  • Educational and Training Sector
  • Automotive Engineering
  • Engine Building
  • General Machine and Workshop Measurement

Zero Reset
Set the display to zero at any point

Inch/Metric
Convert between metric and imperial units

ABS Mode (Absolute Mode)

  • Definition: ABS mode uses the master datum, which is the reference point for all measurements.
  • Setup: Typically, this datum is set with the spindle fully closed or against a calibration standard.
  • Usage: This mode provides the most accurate and consistent measurements because it is based on a fixed reference point.


INC Mode (Incremental Mode)

  • Definition: INC mode allows you to set zero at any point, making it possible to measure differences between parts easily.
  • Setup: You can zero the micrometer at any position without losing the reference from the ABS mode.
  • Usage: This mode is useful for comparing the size of two parts. The display will show “INC” to indicate that this mode is active.

Low Battery
A flashing display or battery symbol will indicate the battery needs changing

Set Zero
Select a default zero offset. Used on micrometers to allow reading from a predefined starting range (25mm, 50mm, 75mm) Once set this value would be the default each time the zero button is pressed.



Part NumberMS-110-025MS-110-050MS110-075MS-110-100
Measuring Range0-25mm25-50mm50-75mm75-100mm
Resolution0.001mm 0.001mm 0.001mm 0.001mm
Accuracy 0.003mm 0.003mm0.004mm  0.004mm
Battery CR2032 3v Lithium Cell CR2032 3v Lithium Cell CR2032 3v Lithium Cell CR2032 3v Lithium Cell
Data Output TypeNoneNoneNoneNone

MS-220 Series Standard Digital Calipers

A precision caliper suitable for a wide range of workshop applications. Allowing Outside, Inside, Depth and Step Measurement (4 way) measurements. Constructed from Stainless Steel, Hardened and Ground Frame.

Auto Power Off: After a pre-set amount of time the display switches off, saving battery power

Auto Wake: Display switches on when movement is detected

Zero Reset: Set the display to zero at any point

Inch / Metric: Convert between Metric or imperial measurement

ABS/INC: ABS mode is the master datum typically with the jaws closed. INC allows zero to be set at any point whilst retaining the ABS, allowing an easy comparison measurement between two parts. “INC” on the display indicates when function is active.

Low Battery: A flashing display or battery symbol will indicate the battery needs changing

Hold: Display value will freeze the current value, allowing a measurement to be taken when the LCD display is not visible. Any movement of the head will not adjust the displayed value until hold button is pressed to exit function. “H” or “HOLD” on the display indicates when the function is active.

Zero Pre-set: Allows the user to enter an offset value. Typically this is entered using + or – button to scroll through to the value required.

Product CodeMS-220-150MS-220-200MS-220-300
Measuring Range0-1500-2000-300
Resolution0.010.010.01
Accuracy0.030.030.04
BatteryCR2032 3v Lithium CellCR2032 3v Lithium CellCR2032 3v Lithium Cell
Data OutputM-SURE Type 1M-SURE Type 1M-SURE Type 1

MS-222 Series Large Digital Calipers

Large workshop caliper. Jaw length. Allowing Outside and Inside (Nib Type Jaw) measurements. Constructed from Stainless Steel, Hardened and Ground Frame.

Inch/mm Conversion

Zero Reset: Set the display to zero at any point

Low Battery: A flashing display or battery symbol will indicate the battery needs changing.

Auto Power Off: After a pre-set amount of time the display will switch off, saving battery power

Auto Wake: Display switches on when movement is detected

ABS / Inc: ABS Mode is the master datum typically from the surface plate. INC allows zero to be set at any point whilst retaining the ABS, allowing an easy comparison measurement between two parts. “INC” on the display indicates when the function is active.

Zero Pre-set: Set the display to zero at any point

Part NumberMS-222-500MS-222-600
Measuring Range0-500mm0-600mm
Resolution0.01mm0.01mm
Accuracy0.05mm0.07mm
BatteryCR2032 3v Lithium CellCR2032 3v Lithium Cell
Data Output TypeM-SURE Type 1M-SURE Type 1

MS-230 Series Inside Groove Digital Calipers

Internal groove measurements. The ground, knife edge measuring contacts are raised allowing stepped bores, grooves or seal depths measurements

Inch/mm Conversion

Zero Reset: Set the display to zero at any point

Low Battery: A flashing display or battery symbol will indicate the battery needs changing.

Auto Power Off: After a pre-set amount of time the display will switch off, saving battery power

Auto Wake: Display switches on when movement is detected

Zero reset: Set the display to zero at any point

Part NumberMS-230-150
Measuring Range8.5-150mm
Resolution0.01mm
Accuracy0.005mm
BatteryCR2032 3v Lithium Cell
Data Output TypeM-SURE Type 1

MS-235 Series Outside Groove Digital Calipers

External groove measurements. The ground, knife edge measuring contacts are raised allowing access into hard-to-reach areas and over stepped work pieces

  • Inch/mm Conversion
  • Auto Power Off
  • Zero Reset
  • Low Battery Alert
  • On/Off
  • Auto Wake
  • Cabled Data Output
Part NumberMS-235-150
Measuring Range0-150mm
Resolution0.01mm
Accuracy0.05mm
BatteryCR2032 3v Lithium Cell

MS-245 Series Tube Wall Thickness Digital Calipers

Tube wall thickness measurements. With removable cylindrical pin jaw for measuring tube wall thickness or end of slot to edge measurement

  • Inch/mm Conversion
  • Auto Power Off
  • Zero Reset
  • Low Battery Alert
  • On/Off
  • Auto Wake
  • Cabled Data Output
Part NumberMS-245-150
Measuring Range0.01mm
Resolution0.01mm
Accuracy0.05mm
BatteryCR2032 3v Lithium Cell
Data Output TypeM-SURE Type 1

MS-510 Series Digital Height Gauge

A Digital Scribing height gauge with carbide tip, with fine adjust thumb wheel for easy control to slide movement. Made of hardened stainless steel column and ergonomic cast iron base

  • Auto Power Off
  • Auto Wake
  • Zero Reset
  • Inch/Metric Conversion
  • ABS/INC
  • Tolerance
  • Low Battery
  • Hold
Part NumberMS-510-300
Measuring Range0-300mm
Resolution0.01mm
Accuracy0.04mm
BatteryCR2032 3v Lithium Cell
Data Output TypeM-SURE Type 1

MS-535 Series Standard Digital Depth Gauges

The M-SURE MS-535 Digital Caliper provides precise measurements with 0.01 mm resolution and 0.02 mm accuracy. Made of durable stainless steel, it features a thumb roller for smooth movement and functions like inch/metric conversion, auto wake, power off, zero setting, and low battery alert. Ideal for professional use, it conforms to Factory Standards and offers optional UKAS calibration.

  • Auto Power Off
  • Auto Wake
  • Zero Reset
  • Inch/Metric Conversion
  • Low Battery
Part NumberMS-535-150MS-535-300
Measuring Range0-150mm0-300mm
Resolution0.01mm0.01mm
Accuracy0.02mm0.04mm
BatteryCR23032 3v Lithium CellCR23032 3v Lithium Cell
Data Output TypeM-SURE Type 1M-SURE Type 1

MS-540 Series Hook End Digital Depth Gauges

Depth Gauge with hook gives additional versatility of internal step or lip thickness, please add the hook thickness to datum for depth measurement. With a length base.

  • Inch/mm Conversion
  • Auto Power Off
  • Zero Reset
  • Low Battery Alert
  • On/Off
  • Auto Wake
  • Cabled Data Output
Part NumberMS-540-150
Measuring Range0-150mm
Resolution0.01mm
Accuracy0.03mm
BatteryCR2032 3v Lithium Cell
Data Output TypeM-SURE Type 1

MS-542 Series Dual Hook End Digital Depth Gauges

The M-SURE MS-542 Digital Caliper with Hook delivers precise measurements with 0.01 mm resolution and 0.03 mm accuracy. Constructed from stainless steel with a hardened ground base, it features inch/metric conversion, auto wake, power off, zero setting, and low battery alert. Conforms to Factory Standards with UKAS calibration available.

  • Inch/mm Conversion
  • Auto Power Off
  • Zero Reset
  • Low Battery Alert
  • On/Off
  • Auto Wake
  • Cabled Data Output
Part NumberMS-542-150
Measuring Range0-150mm
Resolution0.01mm
Accuracy0.03mm
BatteryCR2032 3v Lithium Cell
Data Output TypeM-SURE Type 1

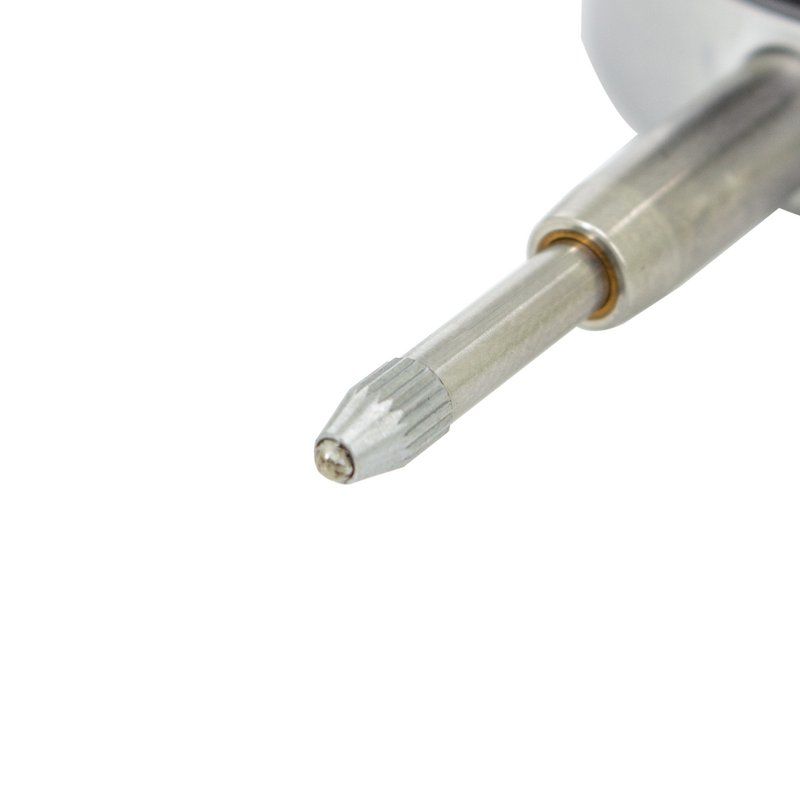

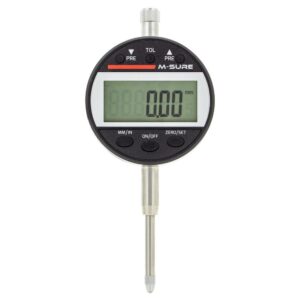

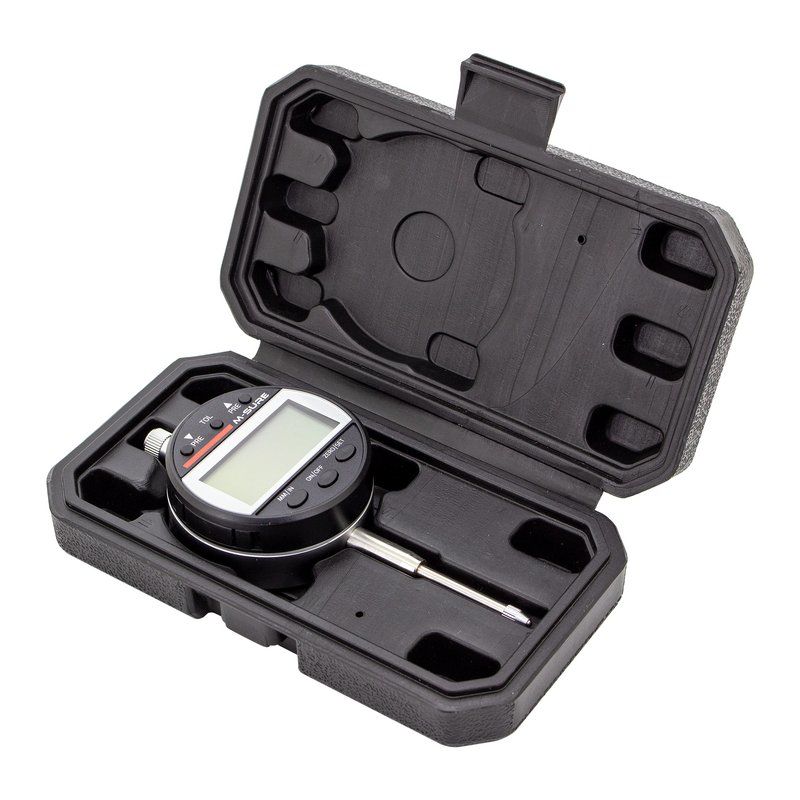

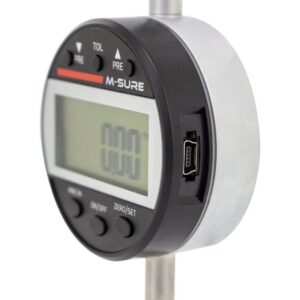

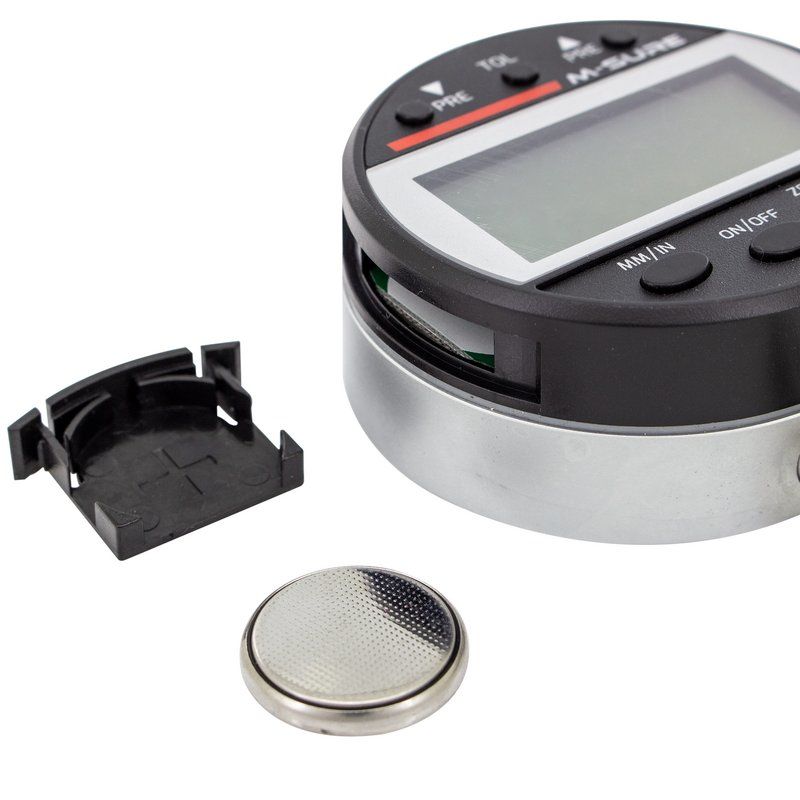

MS-410 Series Digital Plunger Indicator

The M-SURE MS-410 Digital Indicator offers precise 0.01 mm resolution and 0.03 mm accuracy. It features a standard front-facing, non-rotating display with 9-character height, and an 8 mm H7 indicator stem. Functions include auto power off, tolerances, zero, data output, auto wake, inch/metric conversion, and on/off, with advanced cabled data output and ABS/INC. Conforms to Factory Standards with UKAS calibration available.

  • Zero Reset
  • Inch/Metric Conversion
  • Tolerance
  • Low Battery
  • Zero Pre-set
Part NumberMS-410-012MS-410-025
Measuring Range12.7mm25mm
Resolution0.01mm0.01mm
Accuracy0.02mm0.03mm
BatteryCR23032 3v Lithium CellCR23032 3v Lithium Cell
Data Output TypeM-SURE Type 1M-SURE Type 1

MS-411 Series Digital Plunger Indicator Remote Display

The M-SURE MS-411 Digital Indicator provides precise 0.01 mm resolution and 0.03 mm accuracy. It features a standard front-facing, non-rotating display with 9-character height and an 8 mm H7 indicator stem. Functions include inch/metric conversion, on/off, auto power off, zero setting, and low battery alert. Conforms to Factory Standards with UKAS calibration available.

  • Inch/mm Conversion
  • Zero Reset
  • Low Battery Alert
  • On / Off
Part NumberMS-411-012
Measuring Range12.7mm
Resolution0.01mm
Accuracy0.03mm
BatteryCR2032 3v Lithium Cell

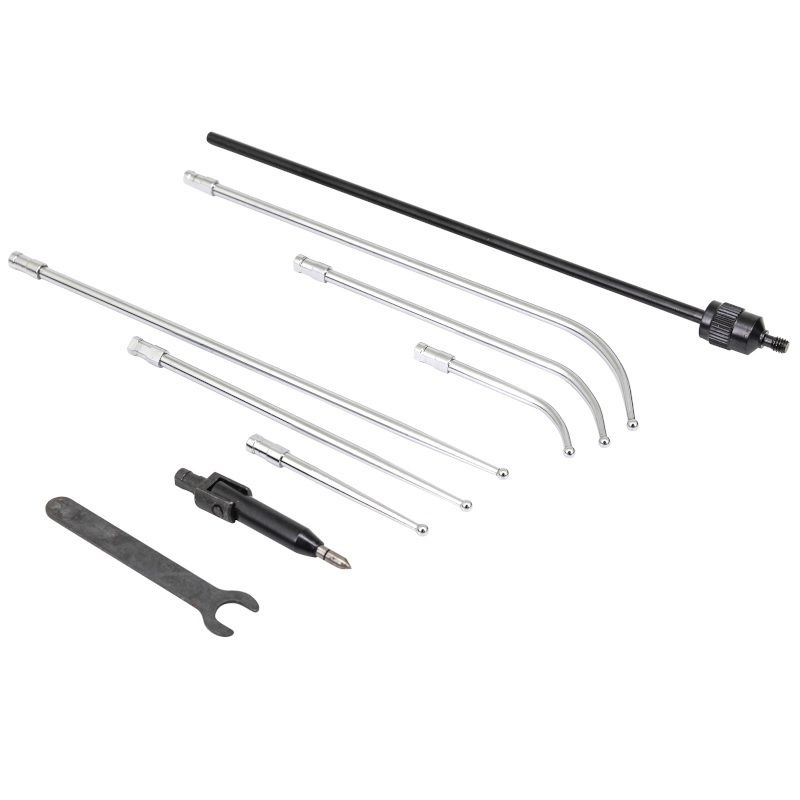

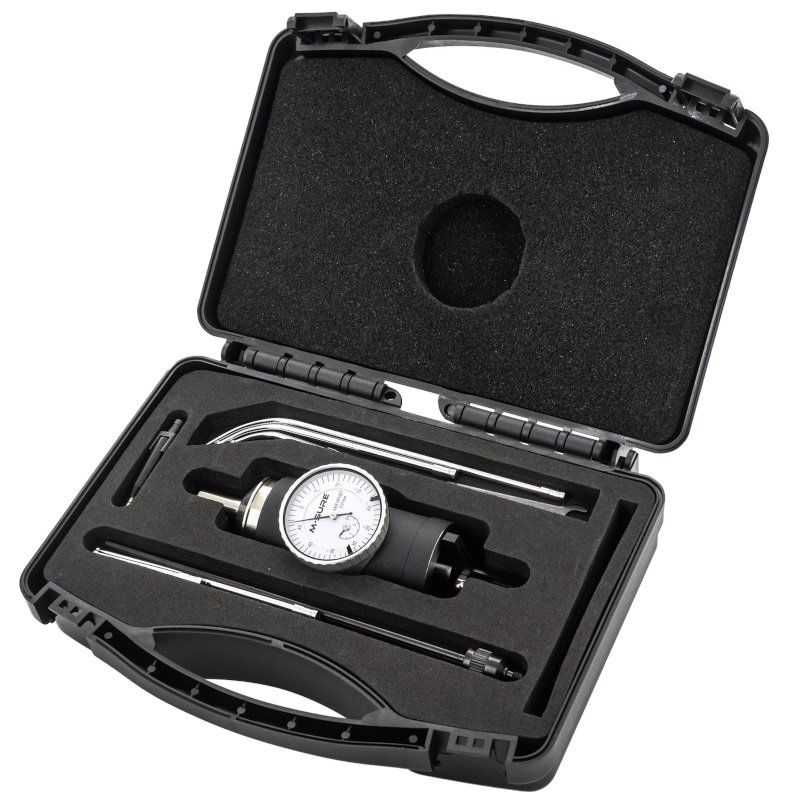

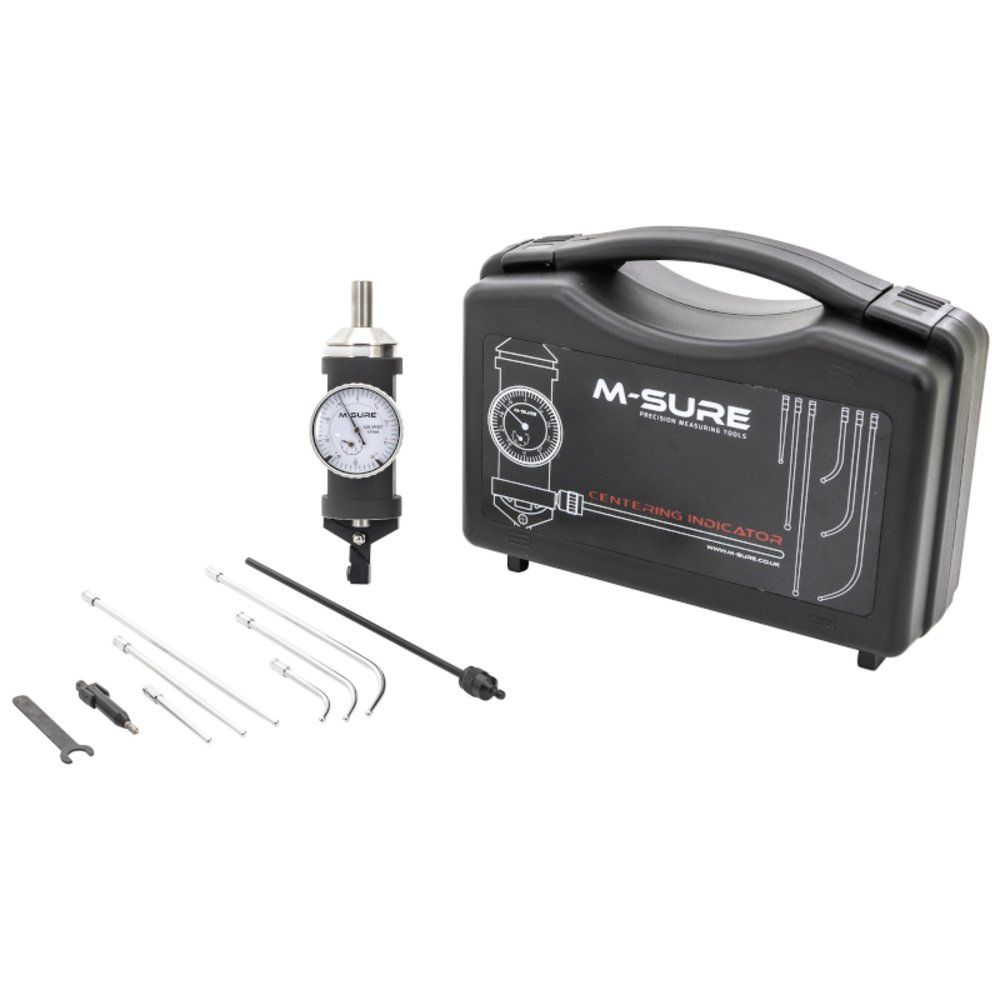

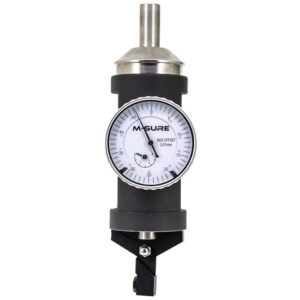

MS-440 / MS-442 Series Dial Centering Indicators

Locate the workpiece center easily with the M-SURE Dial Centering Indicator. Ideal for centering internal and external diameters, it features a stationary outer body and indicator dial with a rotating center spindle for easy operation. The metric dial scale is always visible to the operator, aided by a retaining arm. Cover a large work area with included straight and offset feelers. Suitable for hand or motor spindle operation up to 500 rpm. Comes with the main body, indicator dial, 3 straight feelers, 3 curved feelers, center locating feeler, spanner, retaining arm, storage case, and instructions.

Part NumberMS-440-000MS-442-000
Internal Range3.5-300mm3.5-300mm
External Range0-300mm diameter0-300mm diameter
TypeMetricImperial
Resolution0.01mm0.0005 inches
Accuracy0.01mm0.01mm
Maximum RPM500500
Body ColourBlackSilver
Spindle Diameter10mm3/8″

MS-270 Series Digital Horizontal Linear Scale

The M-SURE MS-270 Series Horizontal Digital Linear Scale offers 150 mm (6 inch) travel with 0.01 mm resolution and 0.03 mm accuracy. Constructed from stainless steel, the hardened and ground scale beam ensures durability. The digital display is integrated into the scale beam. Standard functions include inch/metric conversion, auto power off, zero setting, low battery alert, auto wake, ABS/INC, and data hold. UKAS calibration is available.

  • Inch/mm Conversion
  • Auto Power Off
  • Zero Reset
  • Low Battery Alert
  • Auto Wake
  • Cabled Data Output

Click Here to View Specifications

MS-272 Series Digital Vertical Linear Scale

The MS-272 Series 300mm (12 inch) Digital Linear Scale features a 0.01mm (0.0005 inch) resolution and 0.04mm (0.0015 inch) accuracy. Constructed with a Stainless Steel, Hardened and Ground scale beam, it includes a digital display integrated directly onto the beam. Standard functions such as Inch/Metric Conversion, Auto Power Off, Zero Setting, and Low Battery Alert enhance usability, while additional features like Auto Wake, ABS/INC mode, and Data Hold provide added versatility.

  • Inch/mm Conversion
  • Auto Power Off
  • Zero Reset
  • Low Battery Alert
  • On/Off
  • Auto Wake
  • Hold
  • ABS
  • Cabled Data Output
Part NumberMS-272-100MS-272-150MS-272-200MS-272-300
Measuring Range100mm150mm200mm300mm
Resolution0.01mm0.01mm0.01mm0.01mm
Accuracy0.02mm 0.03mm0.03mm0.04mm
Battery CR2032 3v Lithium Cell CR2032 3v Lithium Cell CR2032 3v Lithium Cell CR2032 3v Lithium Cell
Data Output TypeM-SURE Type 1M-SURE Type 1M-SURE Type 1M-SURE Type 1

MS-278 Series Digital Remote Display Linear Scale

The M-SURE 200mm (8 inch) Remote Digital Linear Scale provides a 0.01mm (0.0005 inch) resolution with an accuracy of +/-0.07mm (+/-0.0025 inch). It offers UKAS Calibration availability and features a scale beam made from Aluminium Extrusion with a 12mm character height on the digital display. Standard functions include Inch/Metric Conversion, On/Off control, and Zero Setting for enhanced versatility and ease of use

  • Inch/mm Conversion
  • Zero Reset
  • Low Battery Alert
  • On/Off
  • ABS
  • Inch Fraction Resolution Set

View Specifications Here
